Rackmount 8-Outlet Smart Power Distribution Unit: Precision, Power, and Intelligence for Your Critical Infrastructure

In the demanding environments of modern data centers, server rooms, and industrial facilities, reliable and intelligent power management is not a luxury—it is the bedrock of operational stability and efficiency. Introducing the Rackmount 8-Outlet Smart Power Distribution Unit (PDU), a sophisticated solution engineered to provide granular control, real-time monitoring, and robust power distribution for your most critical assets. Housed in a durable, highly visible yellow chassis, this 1U rack-mountable PDU is designed for seamless integration and superior performance.

At a Glance: Core Features

• Intelligent Real-Time Monitoring: A crystal-clear front-panel LCD provides immediate, at-a-glance status updates on critical power metrics.
• High-Density Power Output: Equipped with eight versatile outlets and a high-capacity 32A rating to support demanding equipment.
• Comprehensive Remote Management: Integrated network ports allow for complete remote oversight and control over your power environment.
• Robust Industrial-Grade Construction: Built with a durable metal chassis in a standard 1U rackmount form factor, ensuring longevity and easy installation.
• Advanced Connectivity Options: Features serial, USB, and sensor ports to expand functionality and integrate with other management systems.
• Intuitive Local Interface: User-friendly controls and individual LED indicators for each outlet simplify local management and diagnostics.

Deep Dive into Intelligent Power Management

This device is far more than a simple power strip; it is a true Smart Power Distribution Unit designed to put you in complete command of your electrical infrastructure.

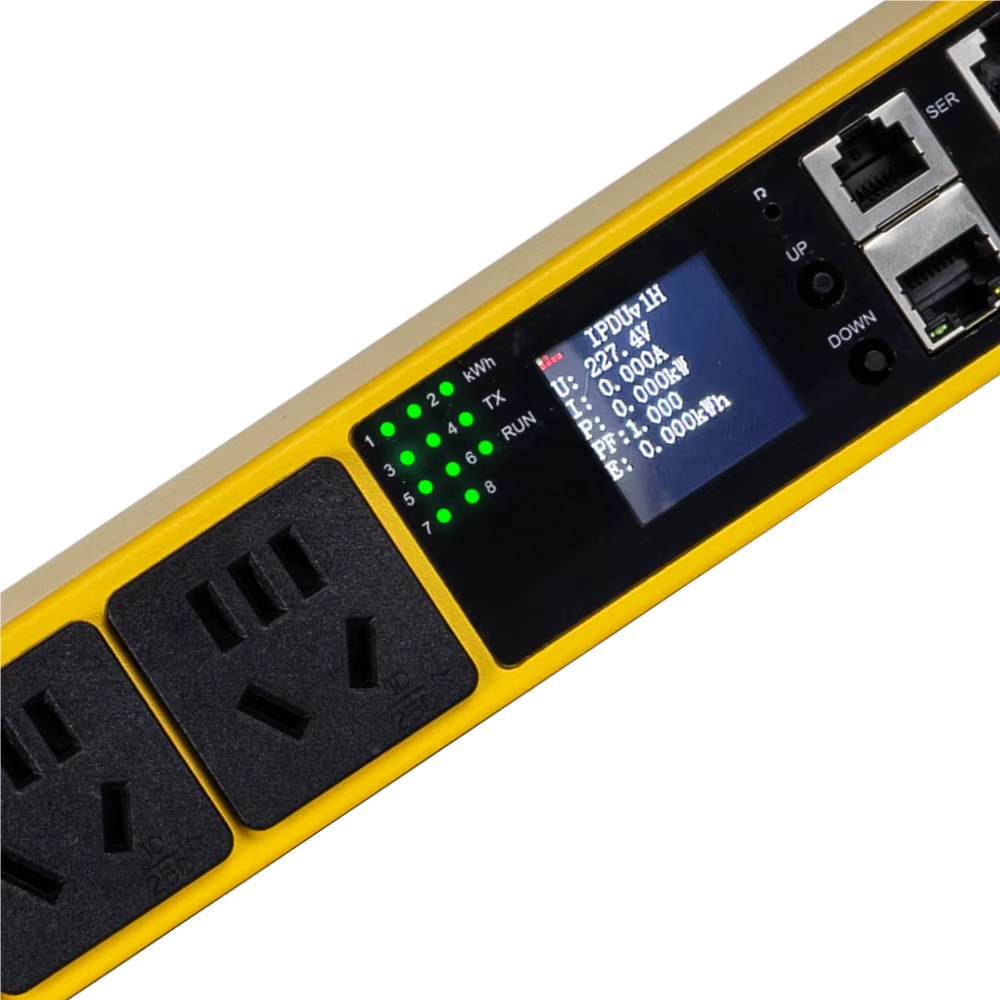

The Nerve Center: LCD Display and Control Panel

The integrated LCD is the local window into your rack’s power ecosystem. Without needing to connect a laptop or log in remotely, engineers can instantly verify:

• Voltage (V): Ensure incoming power is stable and within the safe operating range for your sensitive equipment. The display shows a precise reading, such as 227.4V.
• Current (A): Monitor the total current draw of all connected devices in real-time. This is crucial for preventing circuit overloads and planning for future capacity.
• Power (kW): Track the real power consumption, providing valuable data for calculating operational costs and assessing energy efficiency.
• Power Factor (PF): Understand the efficiency of your power usage. A power factor reading (e.g., 1.000) indicates a highly efficient load, helping you optimize your power infrastructure.
• Energy Consumption (kWh): Accumulate data on total energy usage over time, perfect for billing, departmental cost allocation, or corporate sustainability initiatives.

Adjacent to the screen, simple UP and DOWN buttons allow for easy navigation through menus, while dedicated LED lights indicate the operational status (RUN), network activity (TX), and power consumption alerts (KWh).

Unparalleled Remote Control and Accessibility

The true power of this Smart Power Distribution Unit is unlocked through its advanced connectivity. Equipped with dual Ethernet (NET) ports, a serial console (SER) port, and a USB port, it offers multiple avenues for management:

• Network Management: Connect the PDU to your local network to gain secure, browser-based access from anywhere. This remote interface typically allows you to monitor all power metrics, configure alerts for voltage or current thresholds, and, on enabled models, even remotely reboot individual outlets. This capability is invaluable for managing unmanned facilities or reducing response times, as it eliminates the need for a technician to be physically present to cycle power on a frozen server.
• Serial Console Access: The SER port provides direct, out-of-band management access, which is a critical backup for configuration and troubleshooting if the network becomes unavailable.
• Environmental Monitoring: The dedicated IN and OUT ports are designed for daisy-chaining optional environmental sensors. By adding sensors, you can transform the PDU into a complete rack-level monitoring solution, tracking temperature and humidity to prevent equipment damage from overheating or condensation.
• USB Functionality: The onboard USB port adds another layer of versatility, often used for fast firmware upgrades, downloading event logs directly to a flash drive, or saving configuration profiles.

Engineered for Performance and Reliability

Designed for 24/7 operation in high-stakes environments, every component of this PDU is built to last.

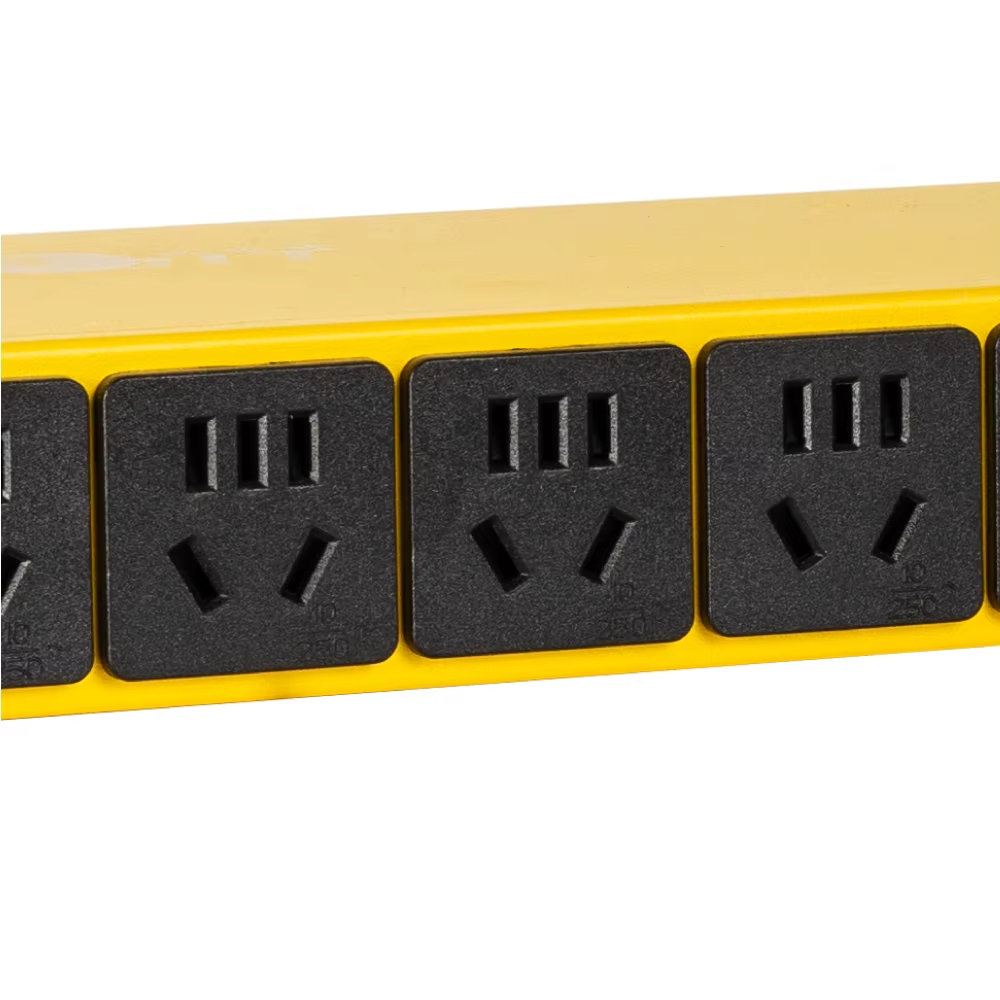

High-Capacity Distribution

With a robust 32A rated current at 230V, this PDU is built to handle high-density racks filled with power-hungry equipment like blade servers, network switches, and storage arrays. The eight outlets provide ample connections, allowing you to power an entire rack’s worth of equipment from a single, intelligently managed unit. The sockets are designed to be versatile, accommodating various plug types for maximum compatibility.

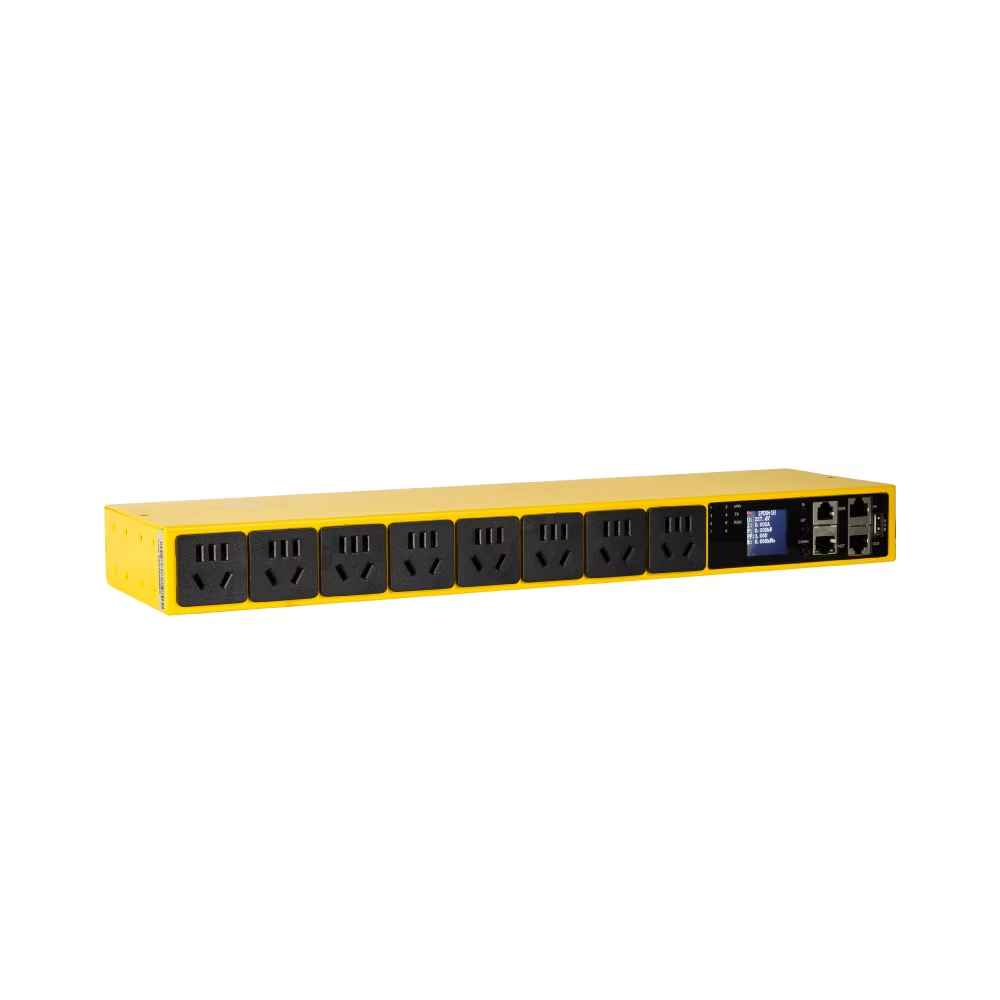

Durable Rackmount Design

The PDU conforms to the standard 19-inch, 1U rackmount specification, ensuring it can be installed quickly and easily into any EIA-standard server rack. The full-metal chassis is not only durable enough to withstand the rigors of an industrial environment but is also finished in a bright yellow powder coat. This high-visibility color makes the unit easy to identify in crowded and complex cabinet wiring. The unit’s grounding is standard, and its construction adheres to international safety certifications, including CE, RoHS, and ETL, guaranteeing a safe and reliable deployment.

Ideal Applications

This Rackmount 8-Outlet Smart Power Distribution Unit is the perfect choice for a wide range of applications, including:

• Data Centers & Colocation Facilities: Enable remote power management and detailed energy audits for client racks.
• Enterprise Server Rooms: Prevent downtime with proactive monitoring and remote reboot capabilities for critical IT hardware.
• Industrial Automation: Provide clean, reliable, and monitored power to control cabinets on the factory floor.
• Telecommunications Hubs: Ensure the uptime of network infrastructure with stable power and environmental monitoring.
• Research & Engineering Labs: Give technicians precise control and monitoring over the power supplied to test benches and diagnostic equipment.
