160A 3-Phase High-Power Power Distribution Unit

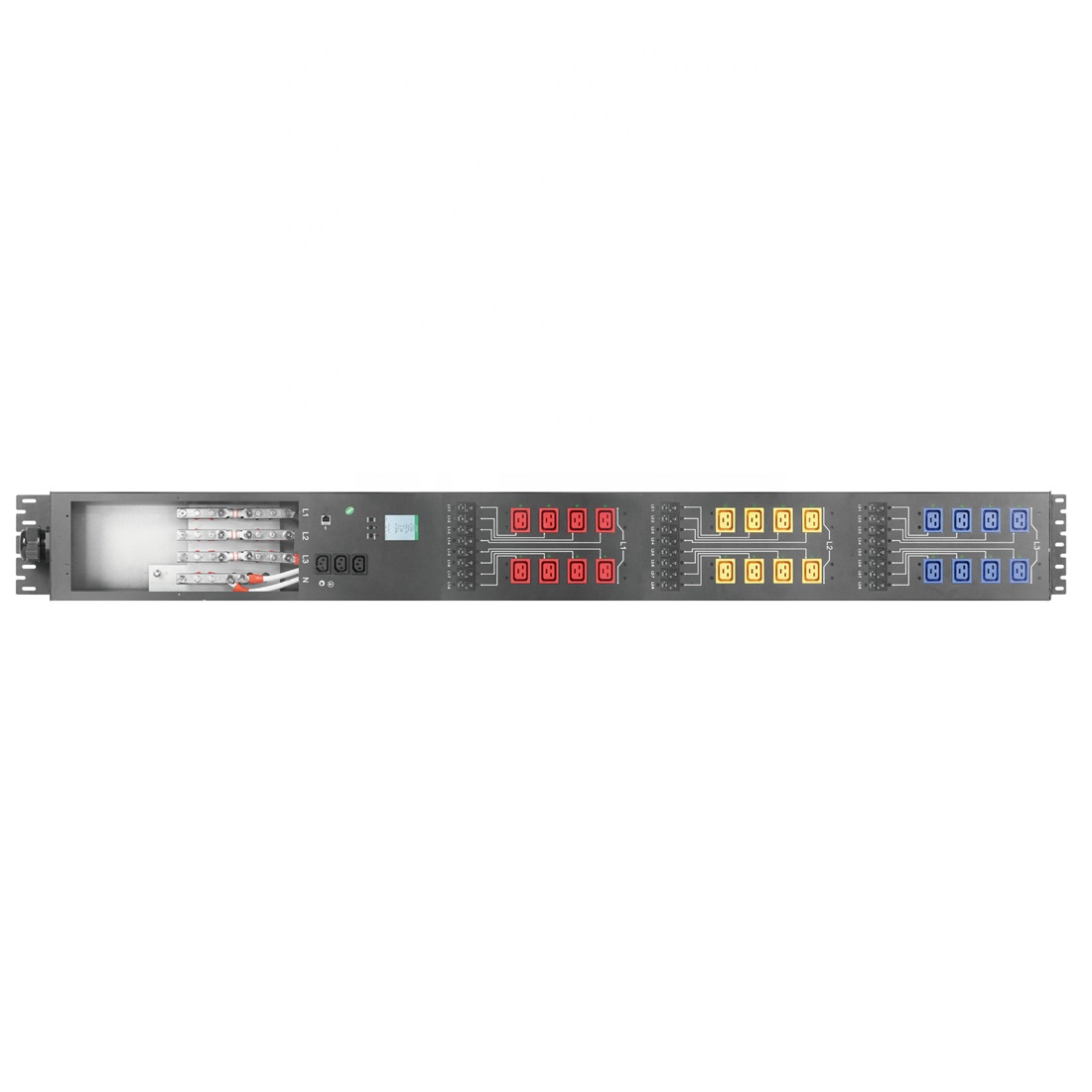

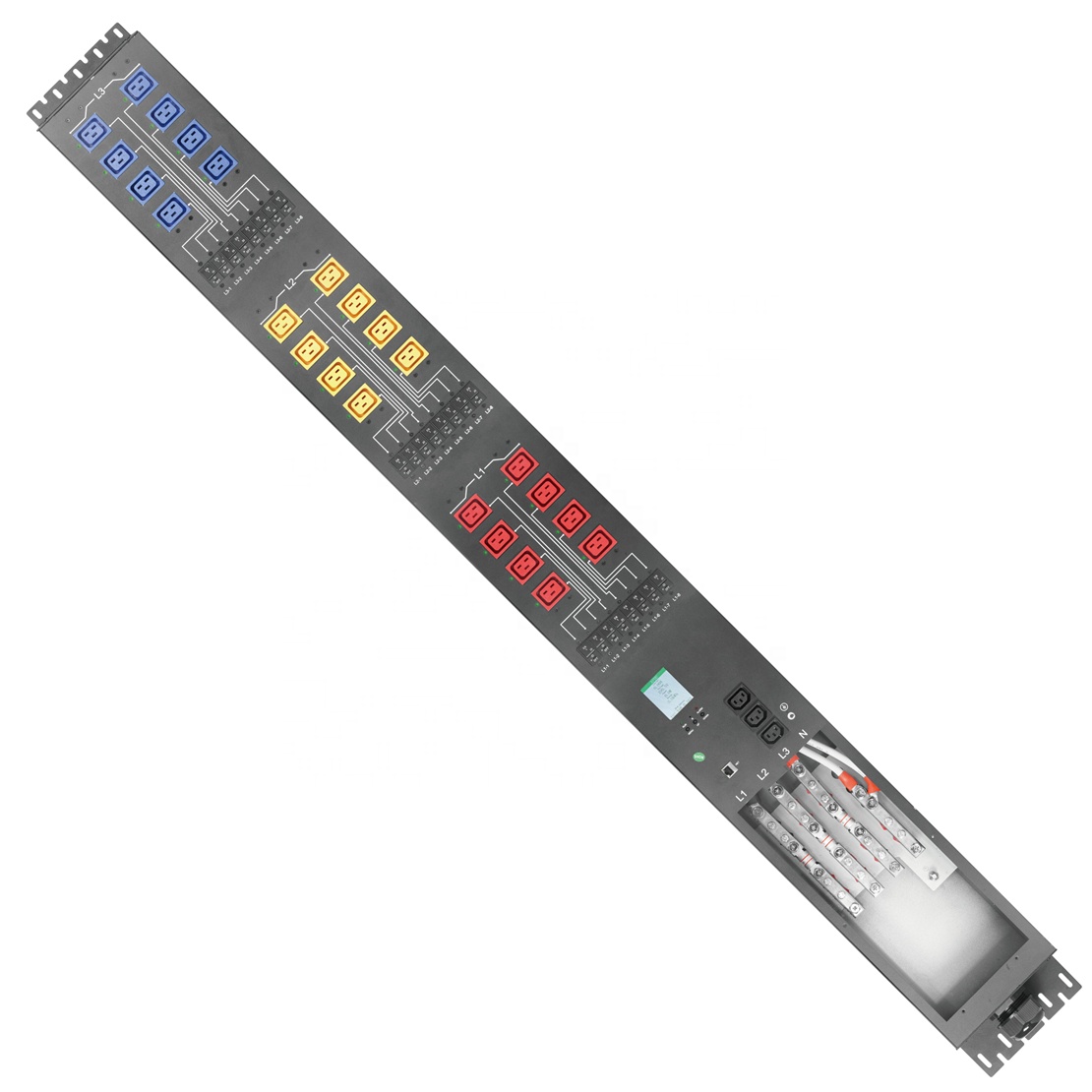

This rack-mountable High-Power Power Distribution Unit is designed for data centers, delivering a robust 160A max output with 3-phase 380/415/433V power. It features 24 color-coded C19/C13 outlets, a digital display for monitoring, and a durable sheet metal construction.
Overview
The 160A 3-Phase High-Power Power Distribution Unit is a premium-grade solution engineered for advanced power management in data centers, network rooms, and high-demand industrial applications. With exceptional output capacity, superior build quality, and a customizable design, this PDU is the backbone of efficient, secure, and scalable power distribution.
This High-Power Power Distribution Unit is built to support complex, high-load environments by delivering stable voltage, intelligent connectivity, and maximum adaptability. Whether you’re powering servers, switches, or other mission-critical hardware, this unit offers the reliable infrastructure needed for uninterrupted operation.
Key Features
Massive 160A Output with 3-Phase Power
This unit is designed for high-demand electrical environments, supporting 380V/415V/433V rated voltage with 160A max output current. The 3-phase system ensures balanced load distribution and higher energy efficiency across connected devices.
Standard 19-Inch Network Switch Compatibility
Easily accommodates standard 19” network switch installations, thanks to its flexible and stackable architecture. The central shelf is height-adjustable, allowing it to host various machine sizes and types.
Modular & Customizable Socket Configuration

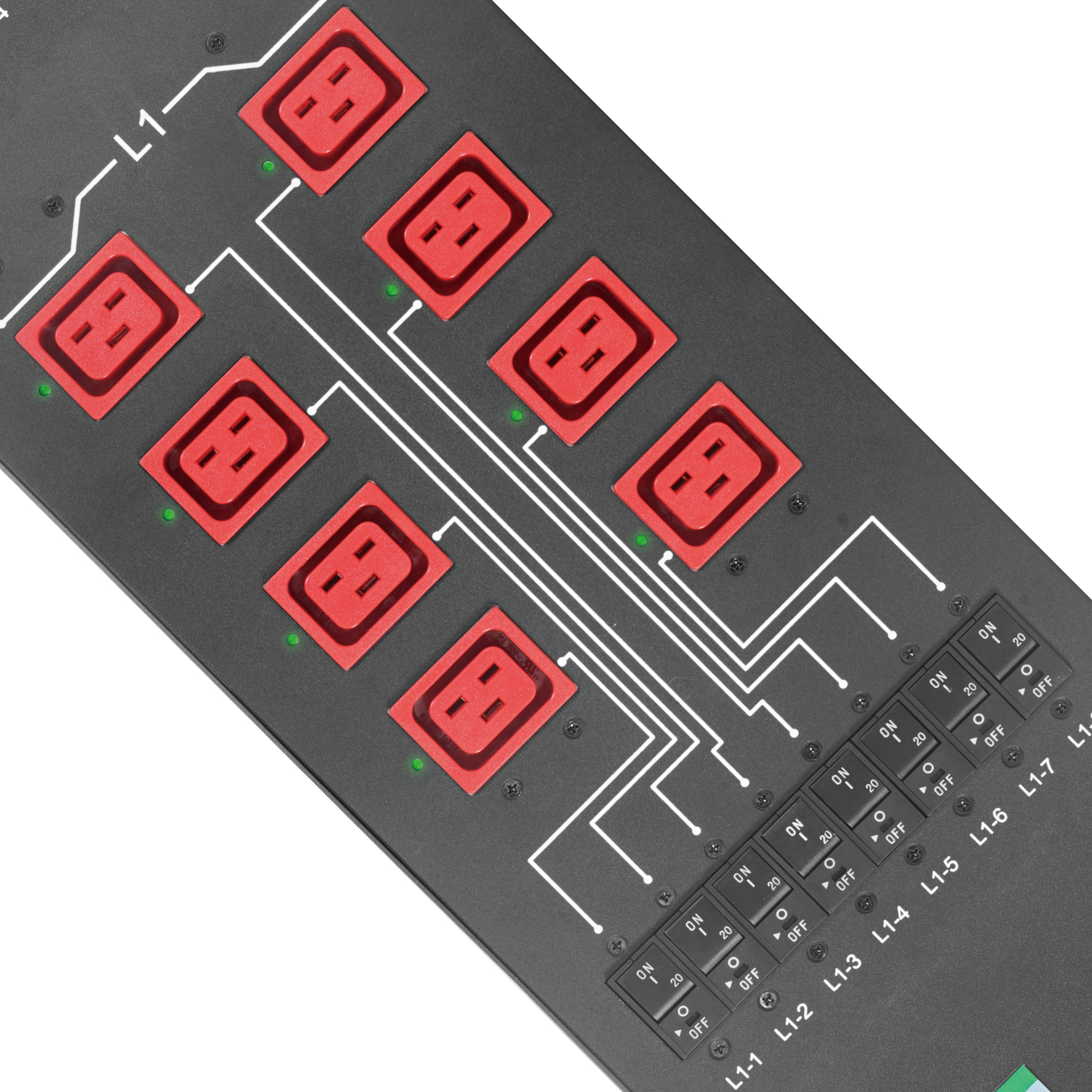

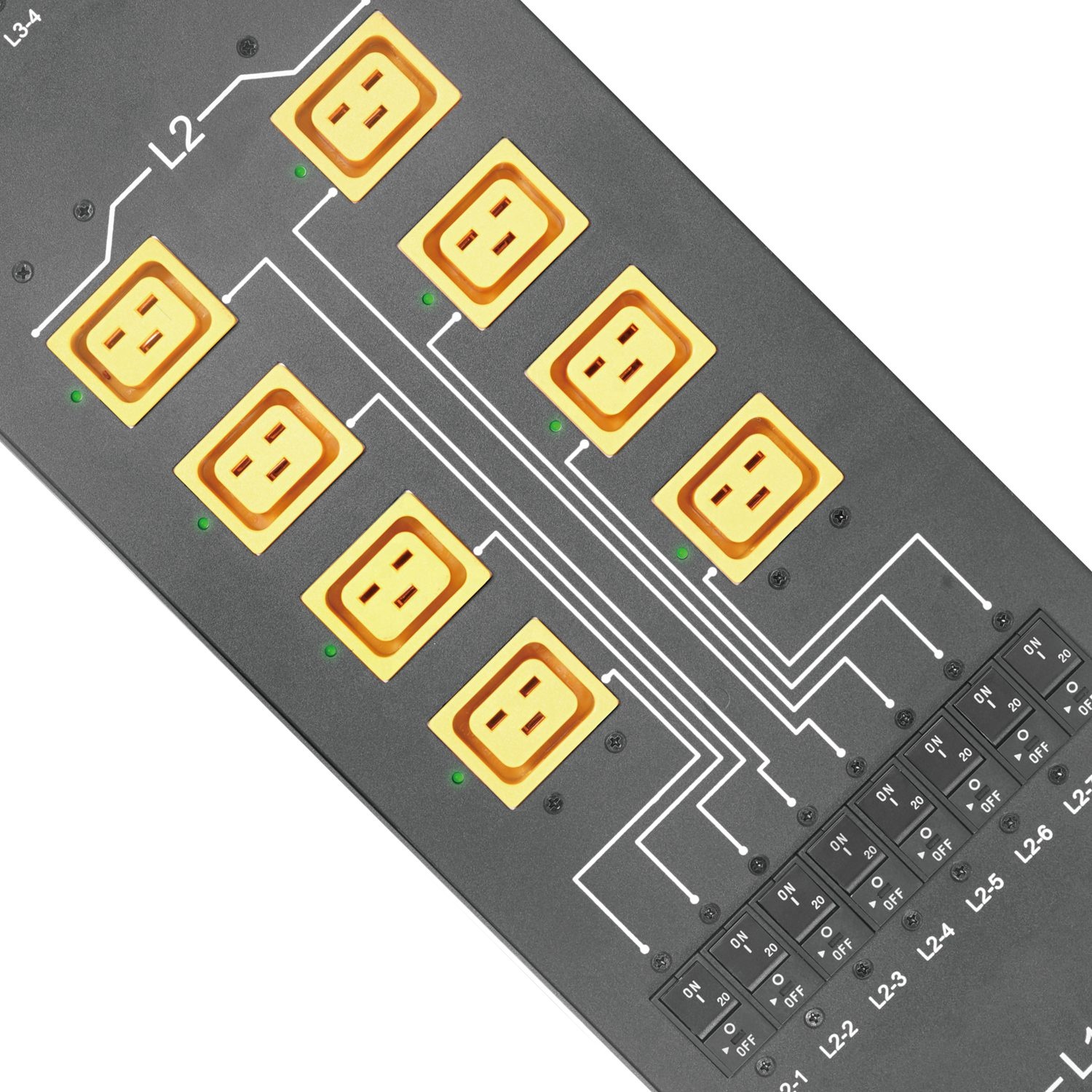

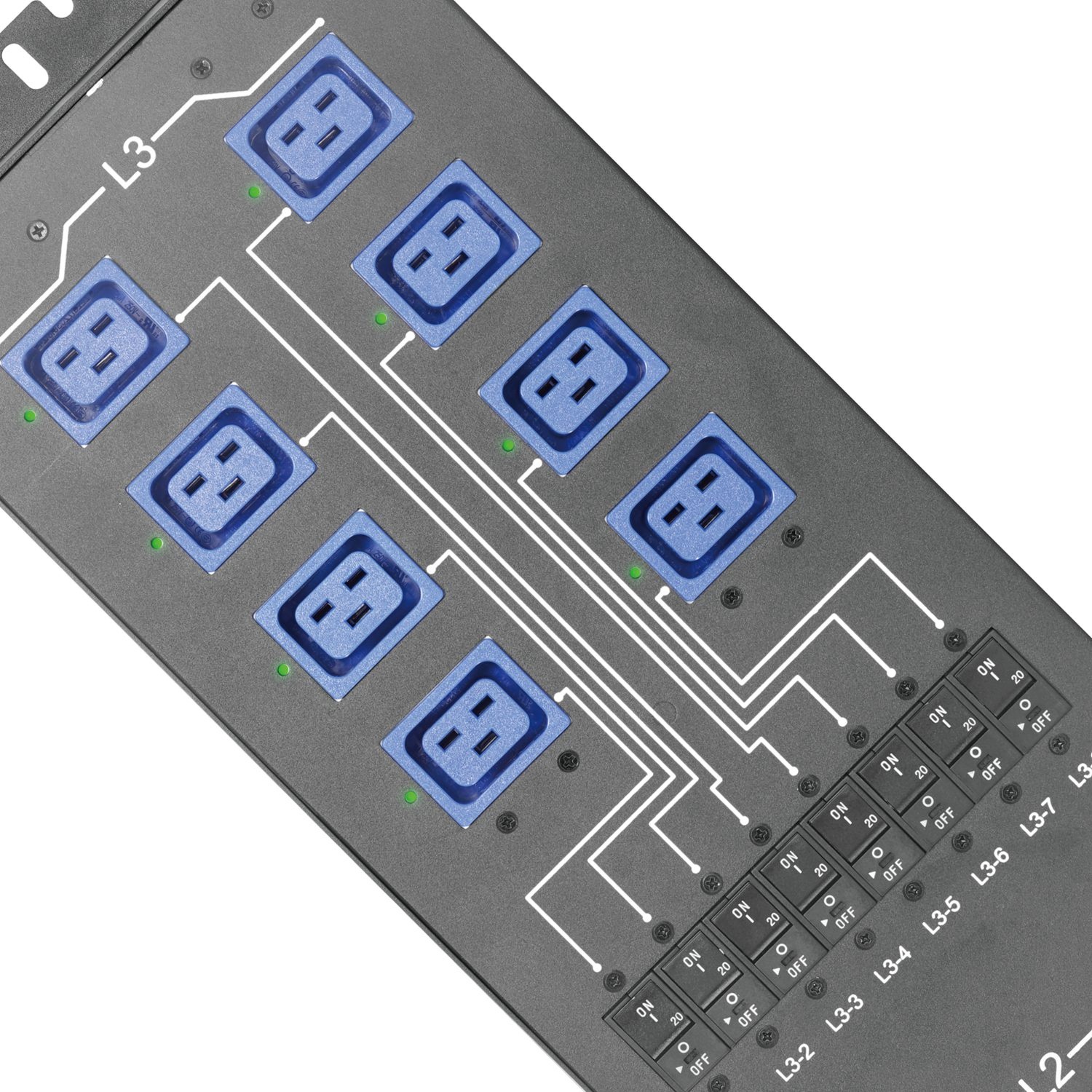

Equipped with 24 output sockets by default (customization available), this unit supports IEC C19 standard or optional C13/C19 configurations. The sockets are neatly color-coded (red, yellow, blue) for easy circuit identification, helping simplify load management and maintenance.
High-Durability Sheet Metal Construction
Crafted from high-strength sheet metal, the unit provides excellent structural integrity and longevity. This sturdy enclosure ensures safe and protected operation, even under continuous heavy loads.
Technical Specifications
| Specification | Detail |
|---|---|
| Rated Voltage | 380V / 415V / 433V |
| Max Output Current | 160A |
| Output Quantity | 24 Way (Customizable) |
| Socket Standard | IEC C19 (Optional: C13/C19) |
| Cable Length | 2 Meters (Customizable) |
| Shell Material | Sheet Metal |
| Product Size (L×W×H) | 1660 × 430 × 230 mm |
| Net Weight | 22 kg |
| Color Options | Black / Silver White / Custom |
| Flame Retardant Rating | UL94V-0 Grade |
| Grounding Type | Standard Grounding |
| Warranty | 1 Year |
| OEM Support | Available |
Advantages of the High-Power Power Distribution Unit
Custom-Fit Flexibility
This High-Power Power Distribution Unit is designed to be versatile. Whether you need a custom socket layout, specific cable length, or your company’s logo, the unit can be tailored to your operational needs.
Improved Thermal Management
The spacing and layout of outlets are optimized for airflow and temperature control. This contributes to enhanced cooling efficiency and overall hardware performance, especially in high-density rack environments.
Scalable Architecture
The modular design allows users to stack and connect units to create larger configurations based on rack space requirements. This ensures scalability without the need for a complete redesign of your power infrastructure.
Enhanced Safety Standards
Meeting UL94V-0 flame retardancy rating and undergoing rigorous electrical tests, this PDU reduces fire risks, ensures grounded operation, and minimizes potential insulation failures.
Ideal for High-Density Data Centers
The 3-phase, high-current design is well-suited for power-intensive environments such as:
- Tier III/IV data centers
- Cloud server facilities
- Financial institutions
- Broadcasting control rooms
- AI or GPU clusters
Visual Design & User Convenience
The PDU’s sleek 1U/2U form factor and intuitive layout help maximize rack space and improve workflow. The color-coded socket groups (red, yellow, blue) not only assist in clear circuit identification but also streamline troubleshooting and maintenance.

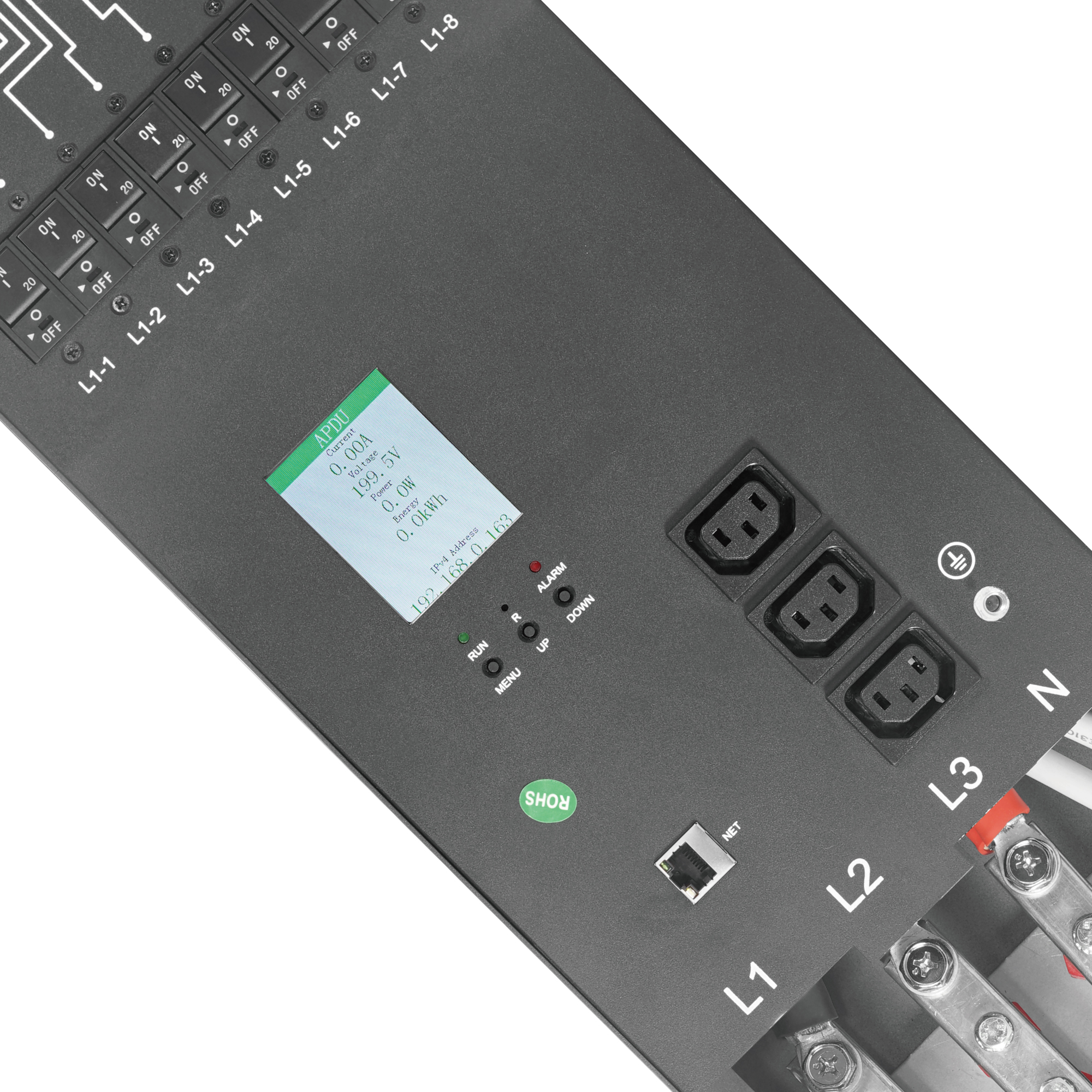

A digital display on the front panel offers real-time monitoring of power parameters, improving transparency and enabling preventive diagnostics.
Applications
This High-Power Power Distribution Unit can be deployed in various sectors:
- Data Centers: Deliver stable and redundant power to racks with high-performance computing equipment.
- Server Rooms: Enhance uptime and simplify power control across critical infrastructure.
- Industrial Facilities: Supply robust power to machinery and automation systems.
- Telecom & Broadcasting: Maintain uninterrupted operation of sensitive communication devices.
- Cloud Computing & AI Labs: Handle the extreme power requirements of GPU-heavy workloads.
Installation & Maintenance
Installation is simple and secure. With customizable cable lengths and adjustable components, the unit adapts to your cabinet configuration without hassle. The standard grounding system ensures secure electrical connections, reducing potential interference or faults.
Minimal maintenance is required thanks to the high build quality and clean internal design. Modular components make it easy to isolate, replace, or upgrade parts without system-wide downtime.
Why Choose This High-Power PDU?
- Performance: Delivers steady 160A output with exceptional efficiency.
- Reliability: Built and tested to meet strict international standards.
- Flexibility: Customizable sockets, lengths, colors, and OEM branding.
- Simplicity: Easy to install, stack, monitor, and maintain.
- Durability: Reinforced with flame-retardant materials and rugged shell.
